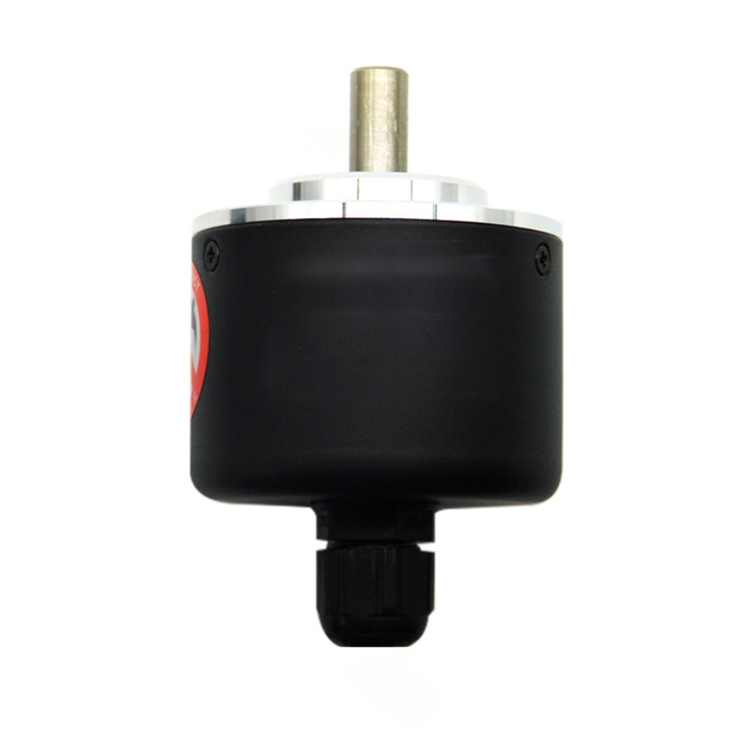

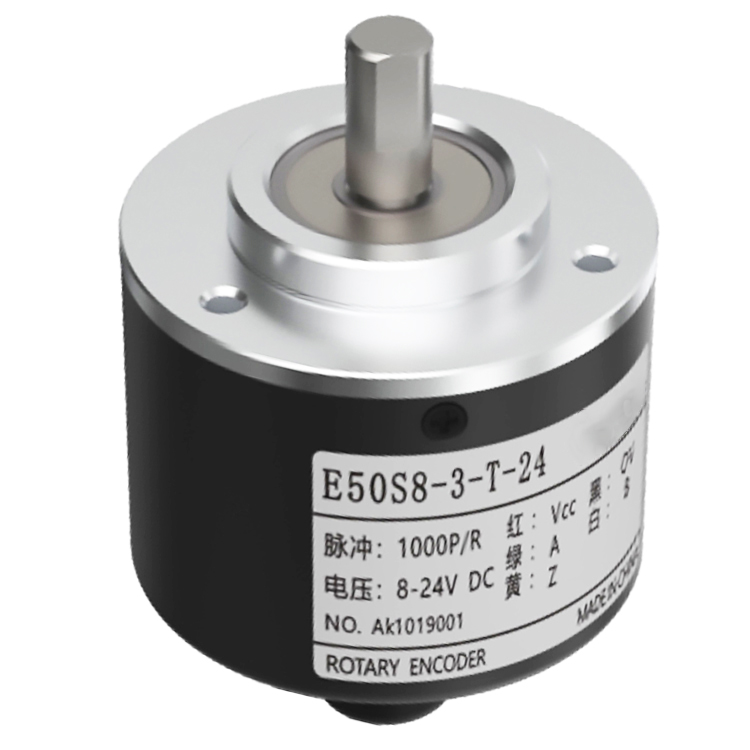

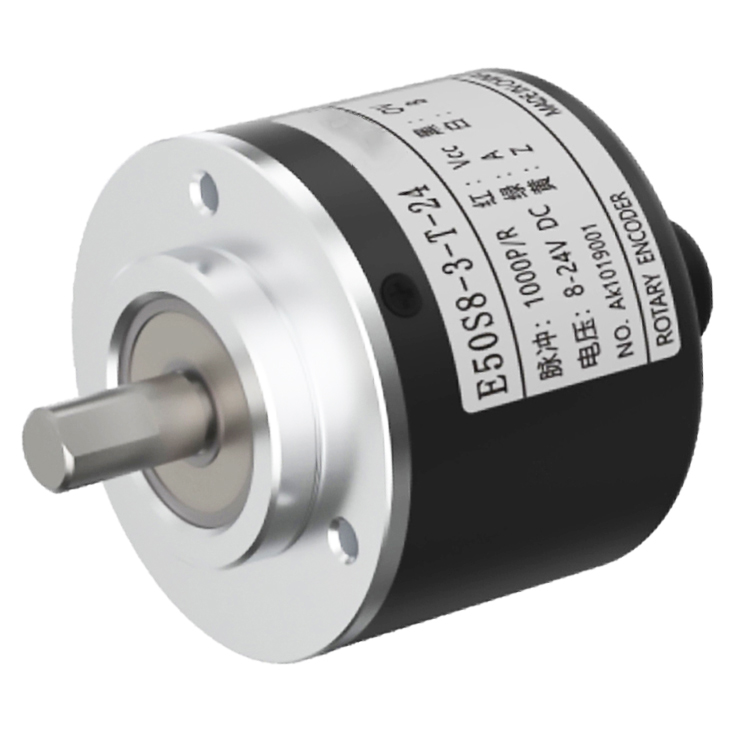

Winston E50S8 rohs incremental dual rotary optical encoder
Winston E50S8 rohs incremental dual rotary optical encoder Winston E50S8 rohs incremental dual rotary optical encoder Winston E50S8 rohs incremental dual rotary optical encoder Winston E50S8 rohs incremental dual rotary optical encoder Winston E50S8 rohs incremental dual rotary optical encoder Winston E50S8 rohs incremental dual rotary optical encoder

Winston E50S8 rohs incremental dual rotary optical encoder

Item No.: 00100
Widely used in automatic control, automatic measurement, as the angle and speed sensors.
Good reliability,long life, anti-jamming performance. Stainless steel shaft has a higher stability
and protection.Metal shell is more solid andanti-impact.
  • Quantity
Request Quote PDF Format
Description Review
Description

Winston E50S8 rohs incremental dual rotary optical encoder


Products Description

    Widely used in automatic control, automatic measurement, as the angle and speed sensors.
Good reliability,long life, anti-jamming performance. Stainless steel shaft has a higher stability
and protection.Metal shell is more solid andanti-impact. Bearing load heavy, anti-oil and water.

Product advantage


Technical parameter

Electrical parameters
Mechanical parameters
Resolution
10-3600P/R
Start the moment
2 x10^-3N - m (+ 25 ° C)
Power supply voltage
DC5V-24V,DC5V
Allowable shaft load
9.8N axial and 9.8N radial
Output voltage VH
≥3.5.≥Vcc-2.5 V
The moment of inertia
4x10^-7 Kg㎡
Output voltage VL
≤0.5V ≤1.0 V
The largest number of revolutions
5000r/min
Current consumption
≤100mA
Working temperature
-20℃~+70℃
The output phase
A, B, Z, A, B, Z
Storage temperature
-20℃~+80℃
Response frequency
0-100kHz
Protection grade
IP65
Rise/fall time
24V ＜1us
5V driver ≤0.1 us
Shock resistant
50M /S^2 (10~200Hz X,Y,Z 3 directions 2 hours each)
Impact resistant
980m/s^2

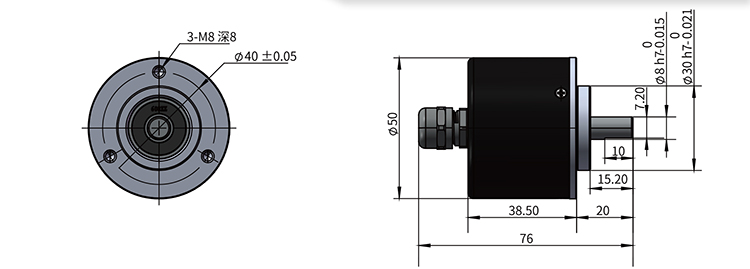

Dimension

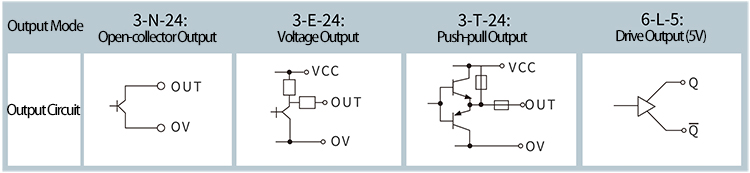

Output waveform


Wiring diagram

Signal
VCC
OV
SIG A
SIGA
SIG B
SIGB
SIGZ
SIGZ
N.C
Cable color
Brown
Blue
Black
Black/Red
White
Black/Red
Orange
Orange/Red
Bronze

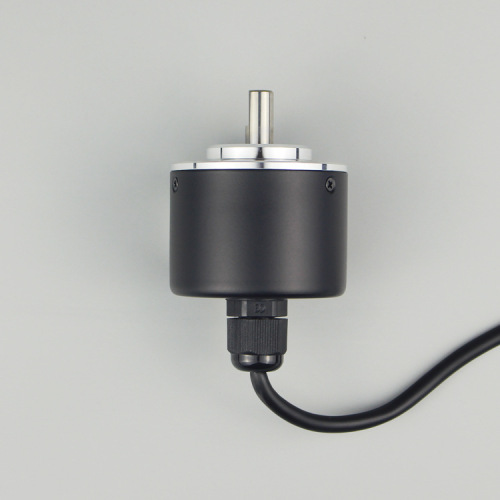

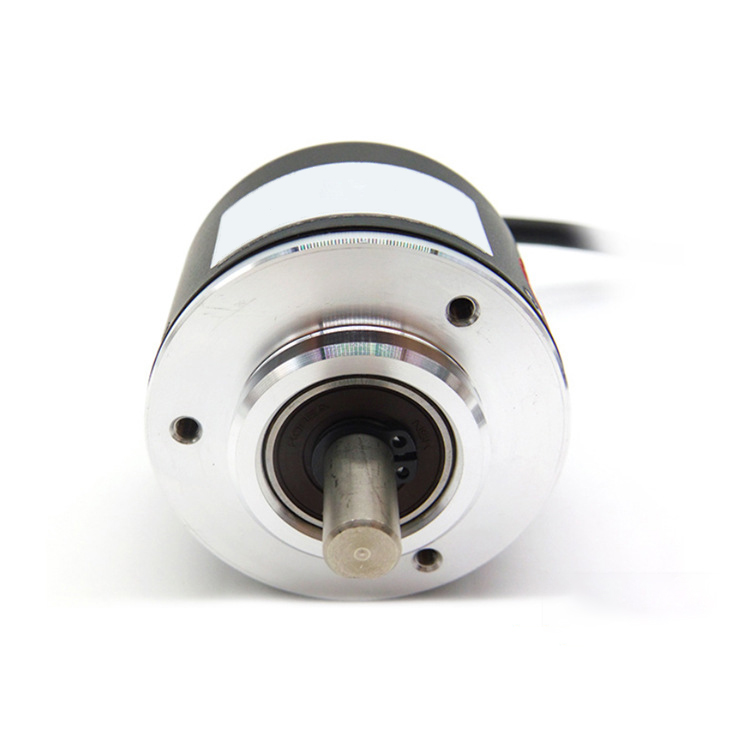

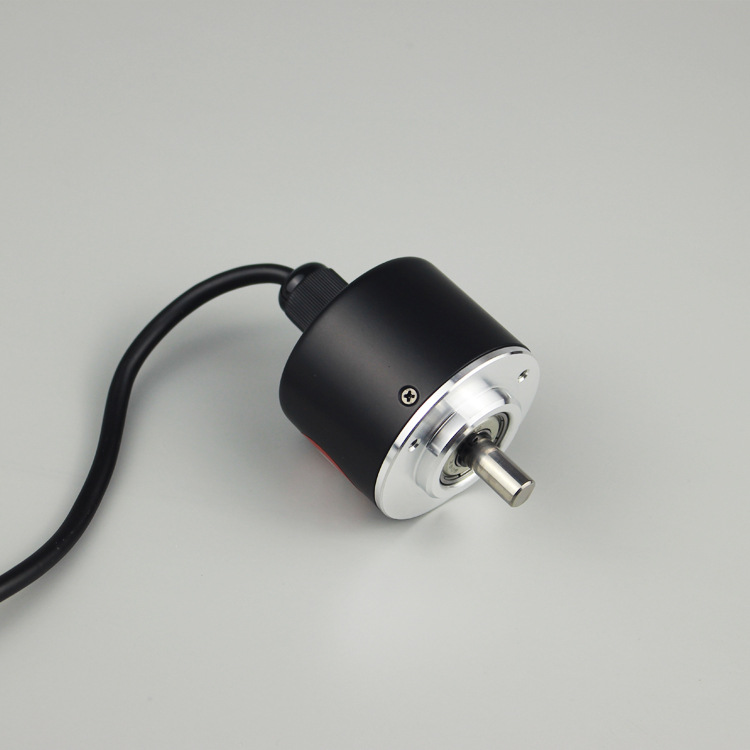

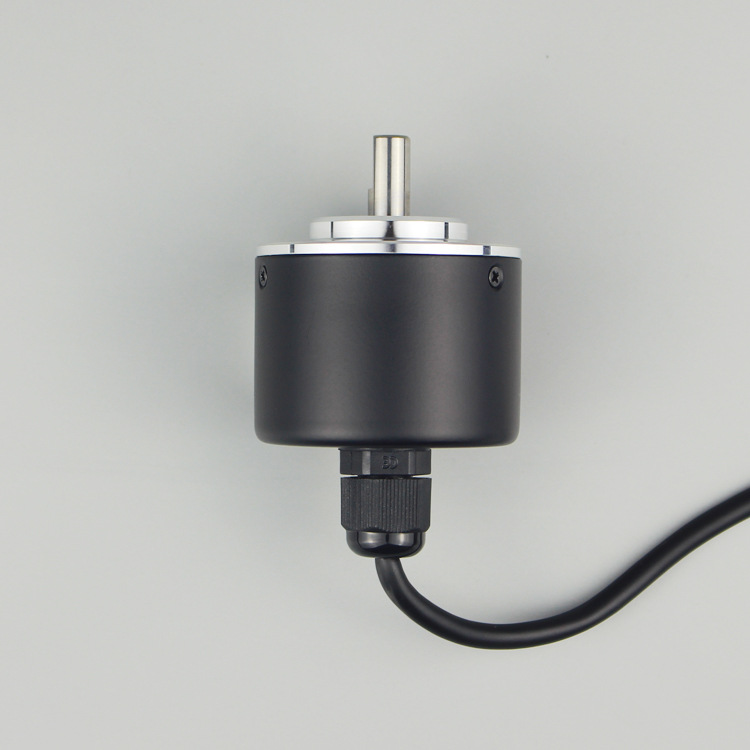

Details Images

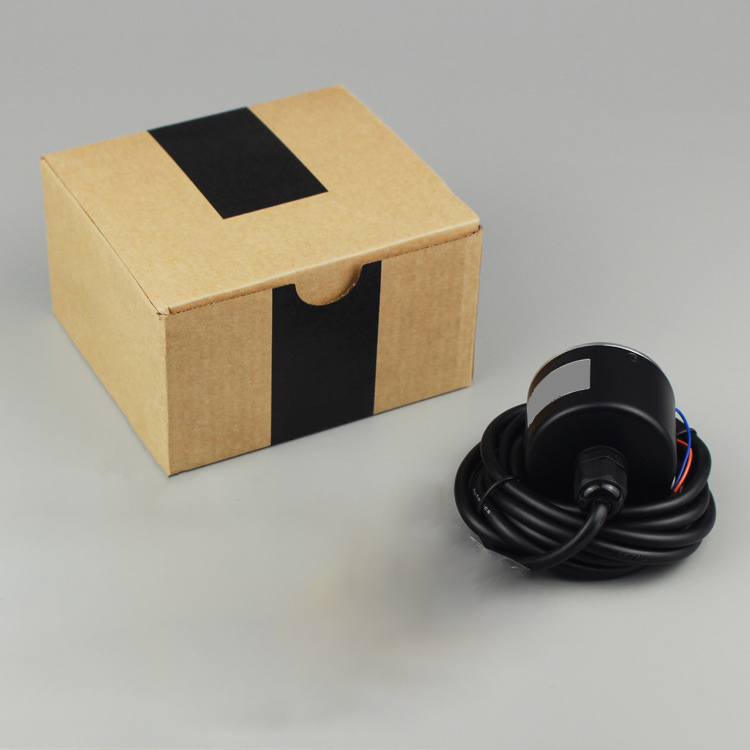

Packaging & Shipping
