Solar PV Combiner Box

Name: Winston DC Combination Lock Box Solar PV Combiner Box
Brand: Winston Electric
SKU: 00118
Availability: InStock
Rating: 5 (1 reviews)

Home > Photovoltaic Accessories > Solar PV Combiner Box

Winston DC Combination Lock Box Solar PV Combiner Box

Item No.: 00118

Solar PV combiner box is water proof, dust proof, with the function of overload protection, lightning protection, over current protection, etc. The combiner box meets the requirement of long time use for both outdoor and indoor situation.

Number of DC Inputs:

2

4

6

8

10

12

14

16

18
DC Breaker:

32A

63A

100A

125A

150A

200A

225A

250A

275A
Quantity

Request Quote Contact Us PDF Format

Description Review

Description

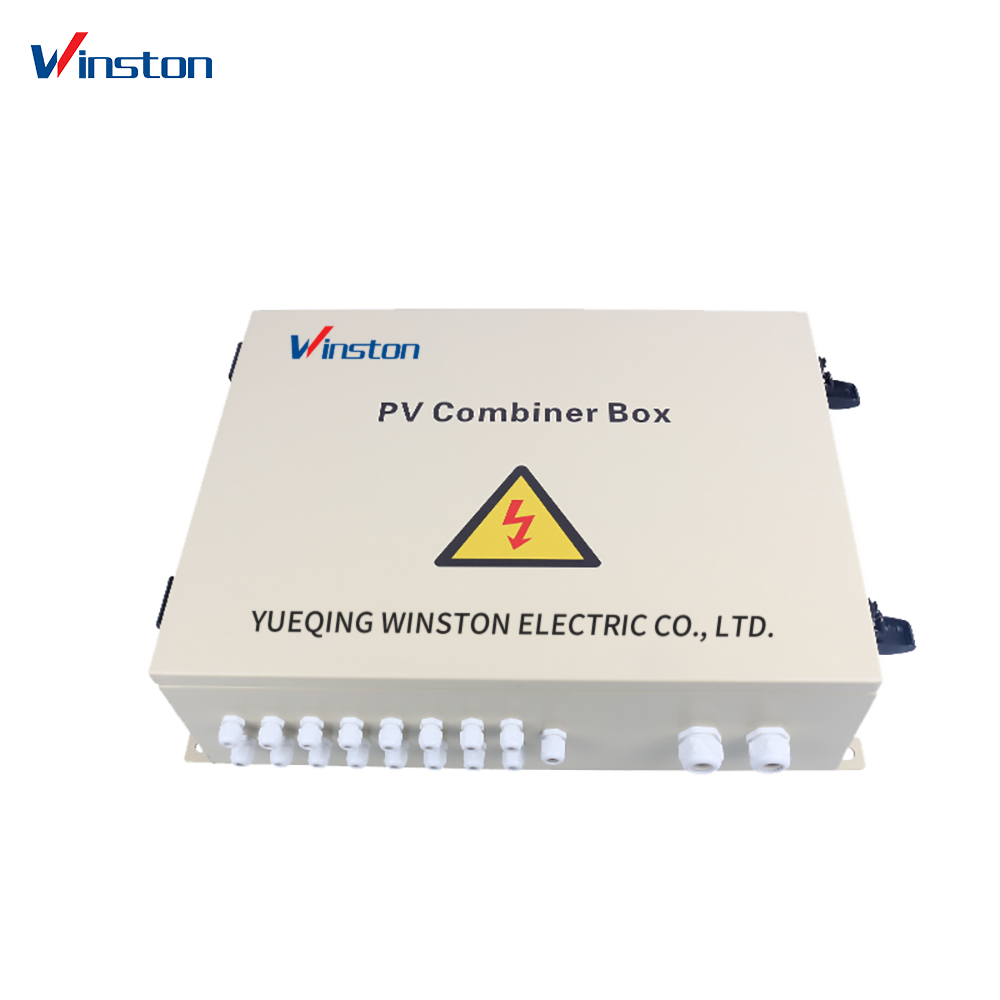

Winston DC Combination Lock Box Solar PV Combiner Box

Products Description
Solar PV combiner box is water proof, dust proof, with the function of overload protection, lightning protection, over current protection, etc. The combiner box meets the requirement of long time use for both outdoor and indoor situation.

Specifications

Model	CB-PV2	CB-PV4	CB-PV6	CB-PV8	CB-PV10	CB-PV12	CB-PV14	CB-PV16	CB-PV18
Number of DC Inputs	2	4	6	8	10	12	14	16	18
Material of Box	Coated Iron
Protection Level	IP65/IP66
IK Impact Resistance Class	IK08
Max Rated Voltage DC	1000V
DC Fuse	15A (Recommend 15A, support other ampre)
Fuse Holder	1000V DC 30 A
DC Breaker	32A	63A	100A	125A	150A	200A	225A	250A	275A
Surge Protection DC	Type II In=20KA, Imax=40KA, Ucpv=1000V DC
Over-Voltage Category	Cat III
Diode for The Function of Anti-Reflux	Built-in
Connection Type DC Input	PG09, IP68
Input Cable Size for Negative and Positive	Φ4-8mm
Number of DC Outputs	1 (Support customize for output number)
Connection Type DC Output	PG11	PG11	PG13.5	PG19	PG19	PG25	PG25	PG25	PG29
Gland Connectors	Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68
Ambiant Temperature Range/Humidity	Temperature: -20°C~+ 60°C, Humidity: 0-99%
Altitude	≤2000m. Derating for above 2000m.
Installation	Wall mounting/Padlockable latch

Features
1. IP65 design, waterproof, anti-dust and lightning protection
2. Strict test for high and low temperature
3. Convenient installation, the simplified wiring system, the easiest way of wiring.
